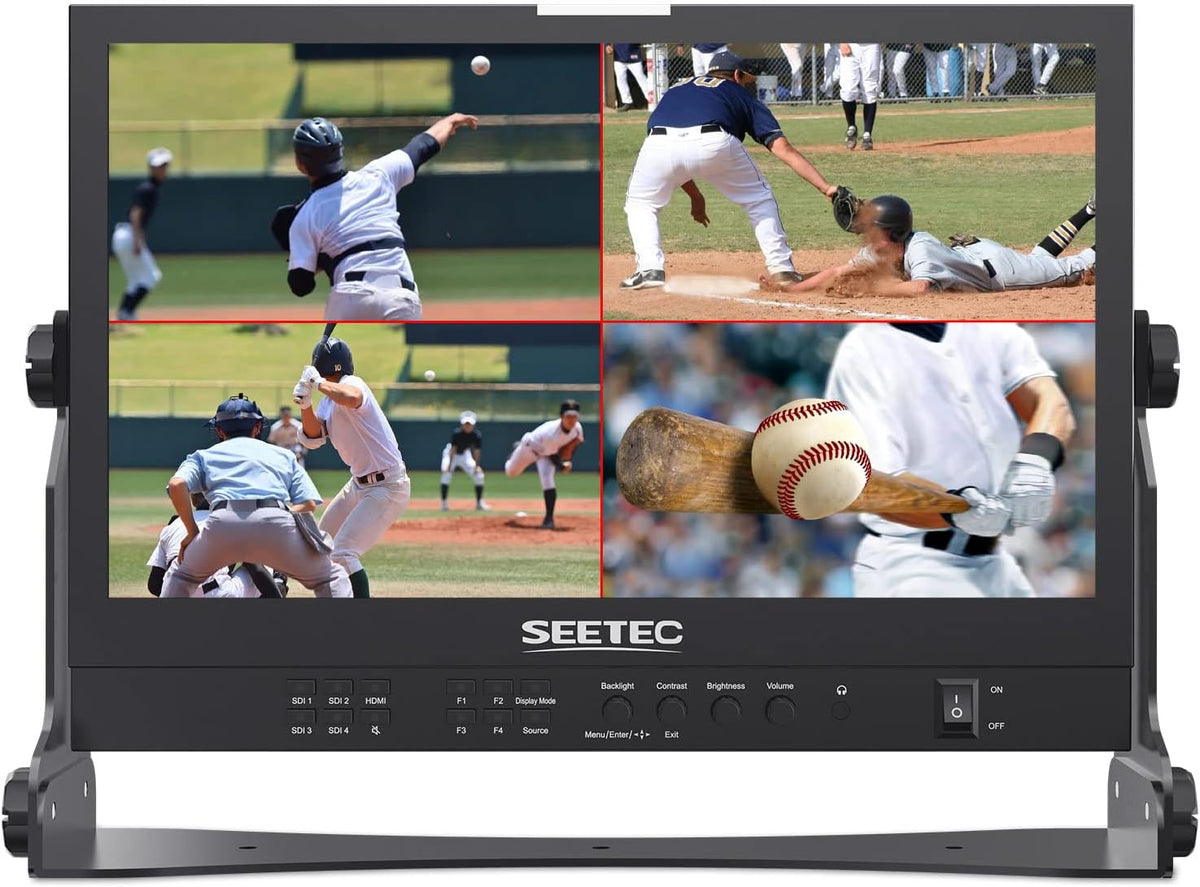

15.6 inch Multi Camera Broadcast Production Monitor with Waveform LUT HDR 4X3G SDI Inputs and Outputs HDMI RS485 Full HD 1920x1080 M36930
Sale price
$28.99
Regular price $122.92
Skip to product information

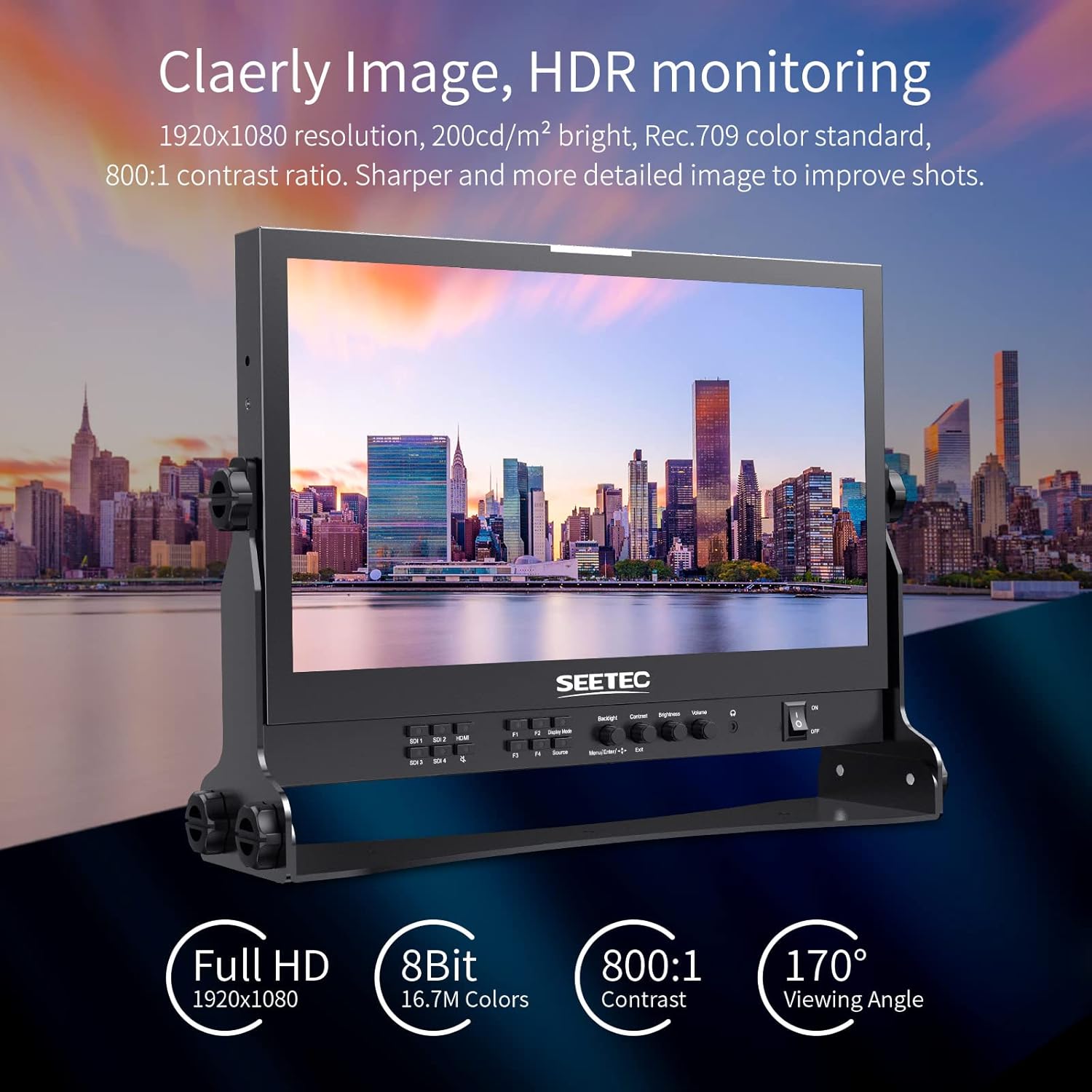

【Accurate Color, Clearly Image】with 800:1 contrast ratio, high resolution 1920x1080, accurate color reproduction, provides you natural and clear image. Supports HDR (high dynamic range) monitoring, for incredible clarity and details, effectively enhancing the overall picture quality.

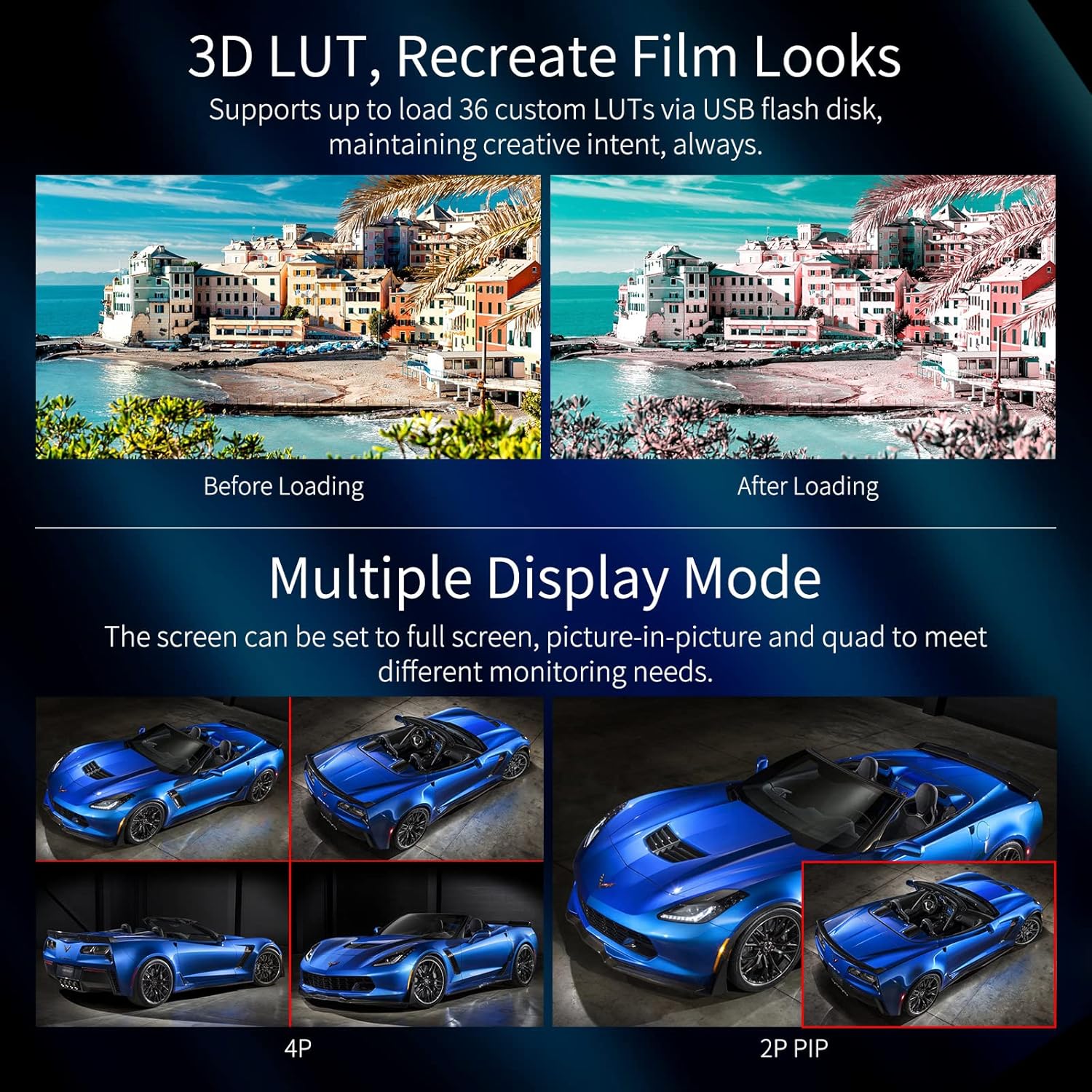

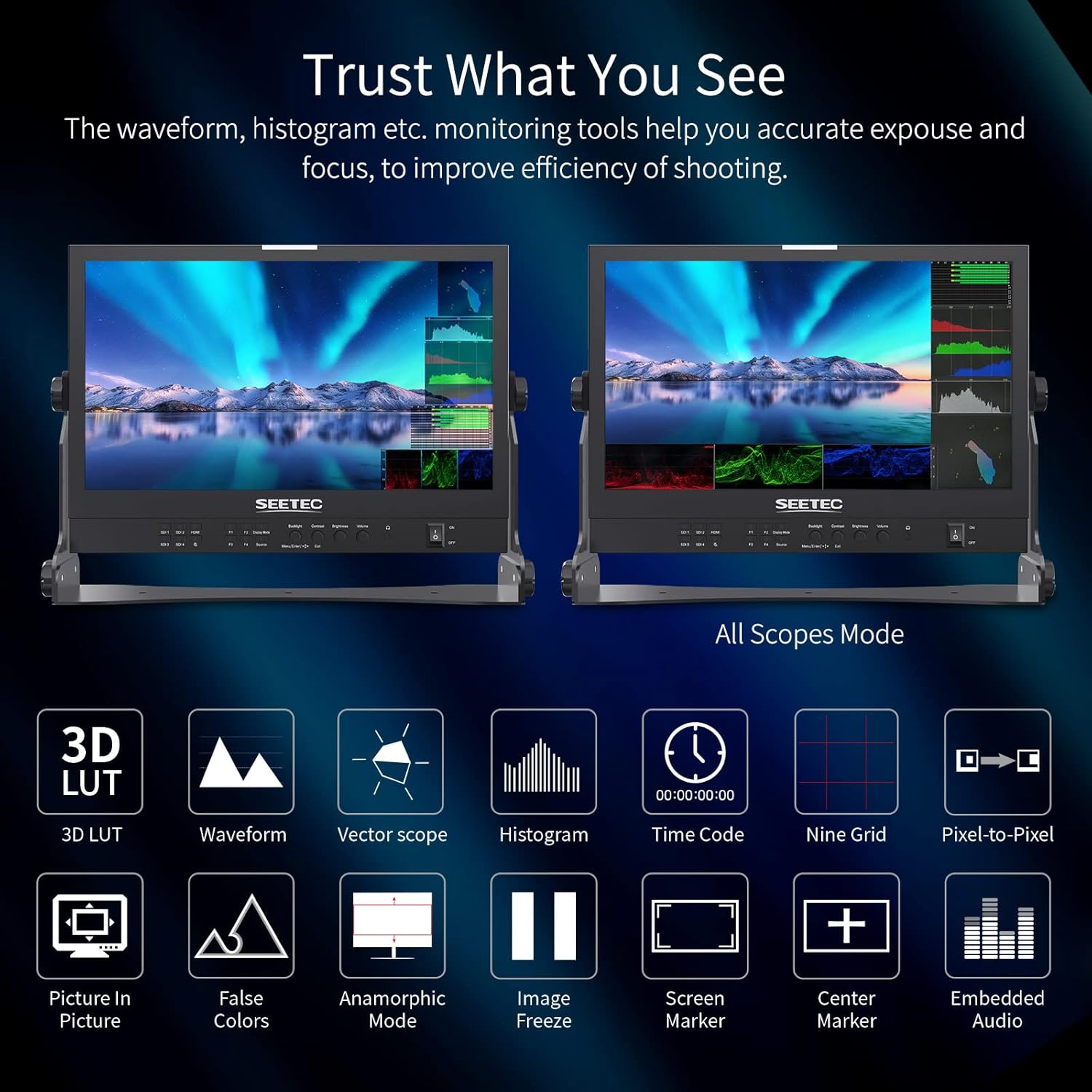

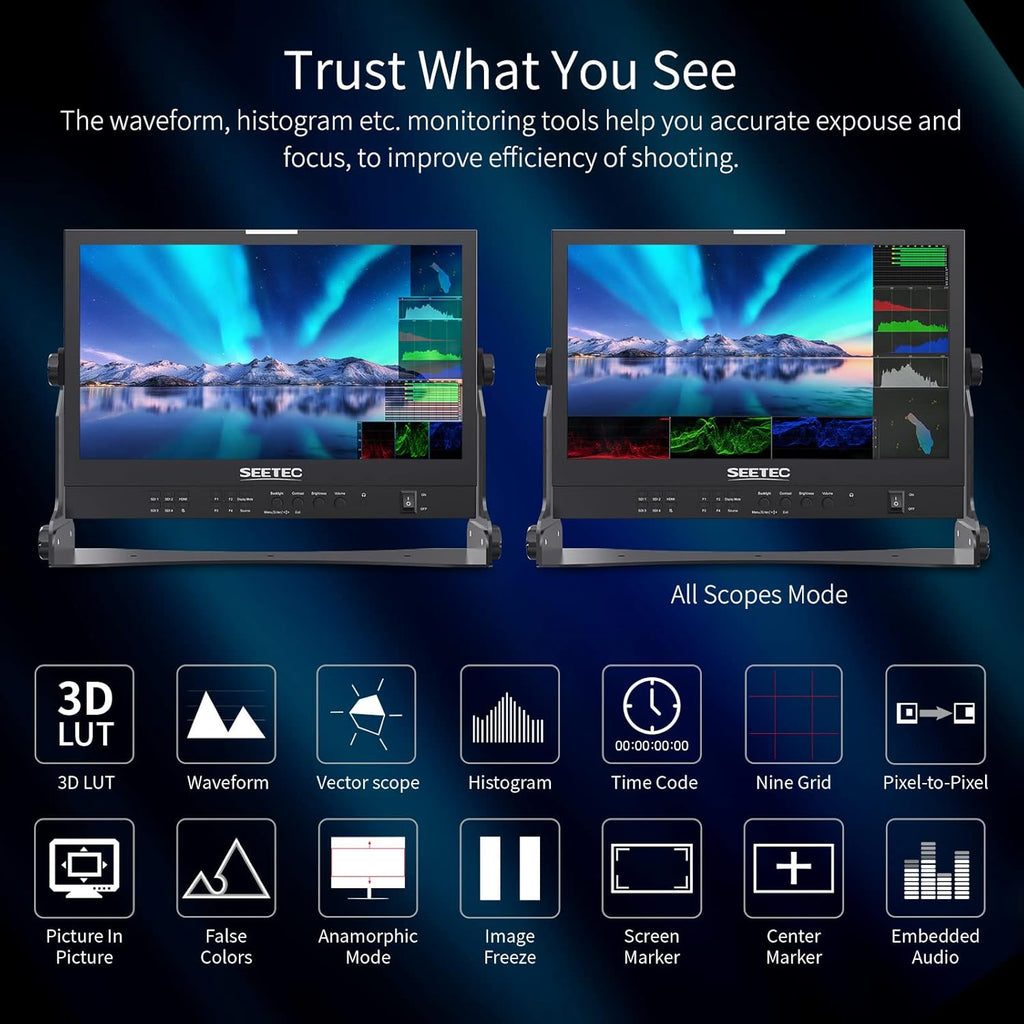

【Improve the Shooting Efficiency】Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash disk (up to load 36), recreate film looks. Provides a series professional auxiliary monitoring tools, help you accurate focus and expose.

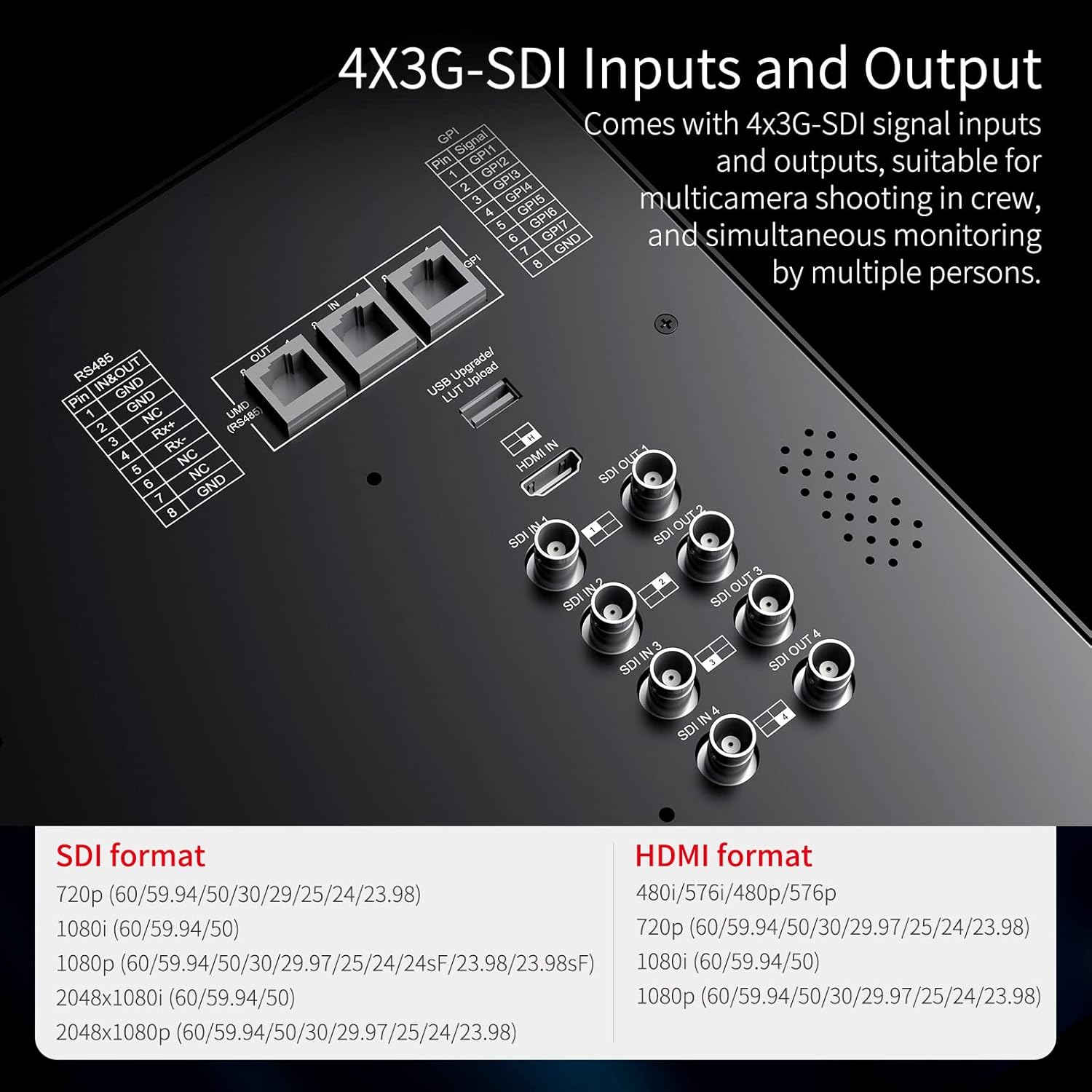

【4X3G-SDI Inputs and Output】It comes with 4x3G-SDI signal inputs and outputs, suitable for multicamera shooting in crew, and simultaneous monitoring by multiple persons. In addition, it also with a HDMI input, RS485, GPI control interface, meet different needs.

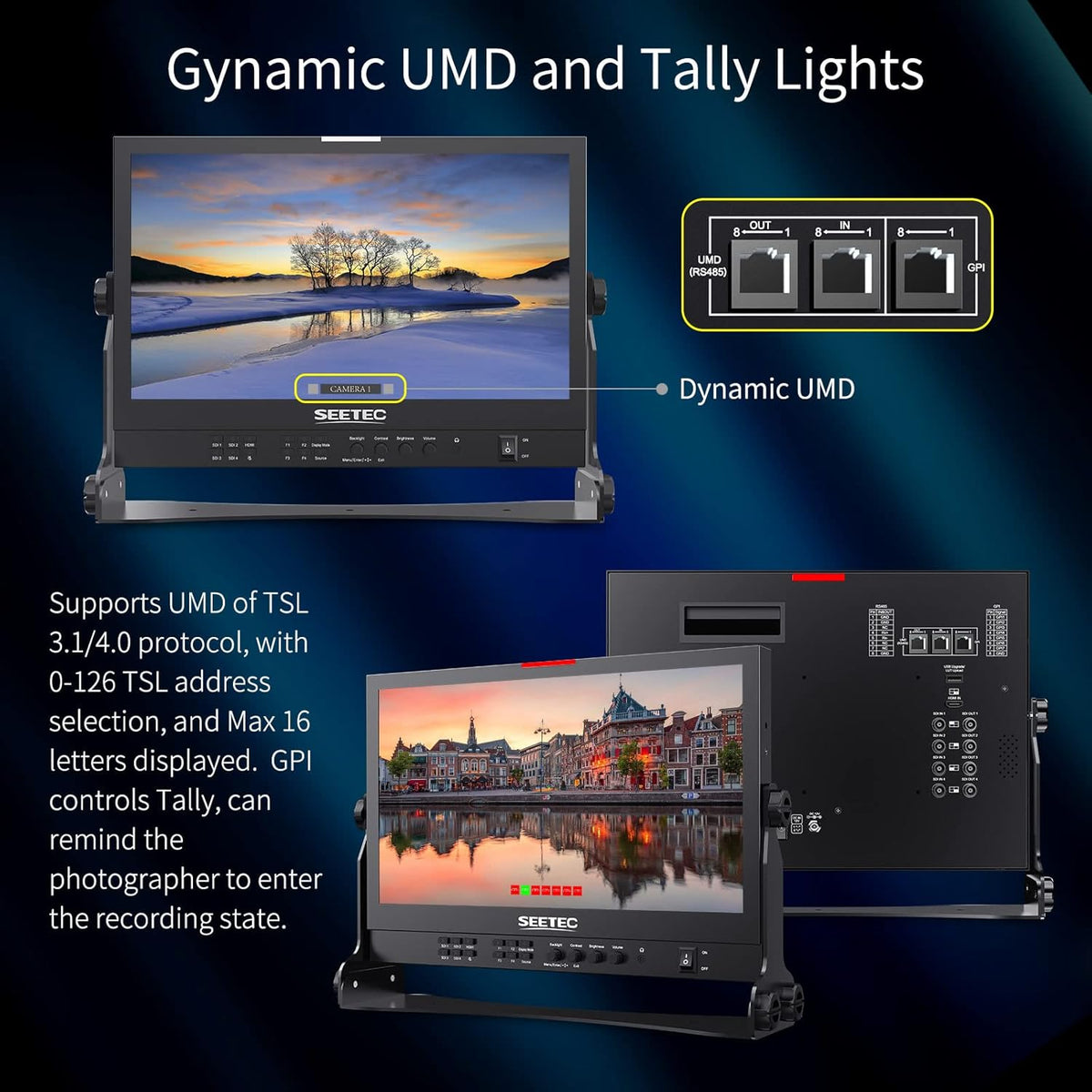

【Gynamic UMD and Tally Lights】ATEM156S supports UMD of TSL 3.1/4.0 protocol, with 0-126 TSL address selection, and Max 16 letters displayed. GPI controls Red Tally and Green Tally, which can remind the photographer to enter the recording state.

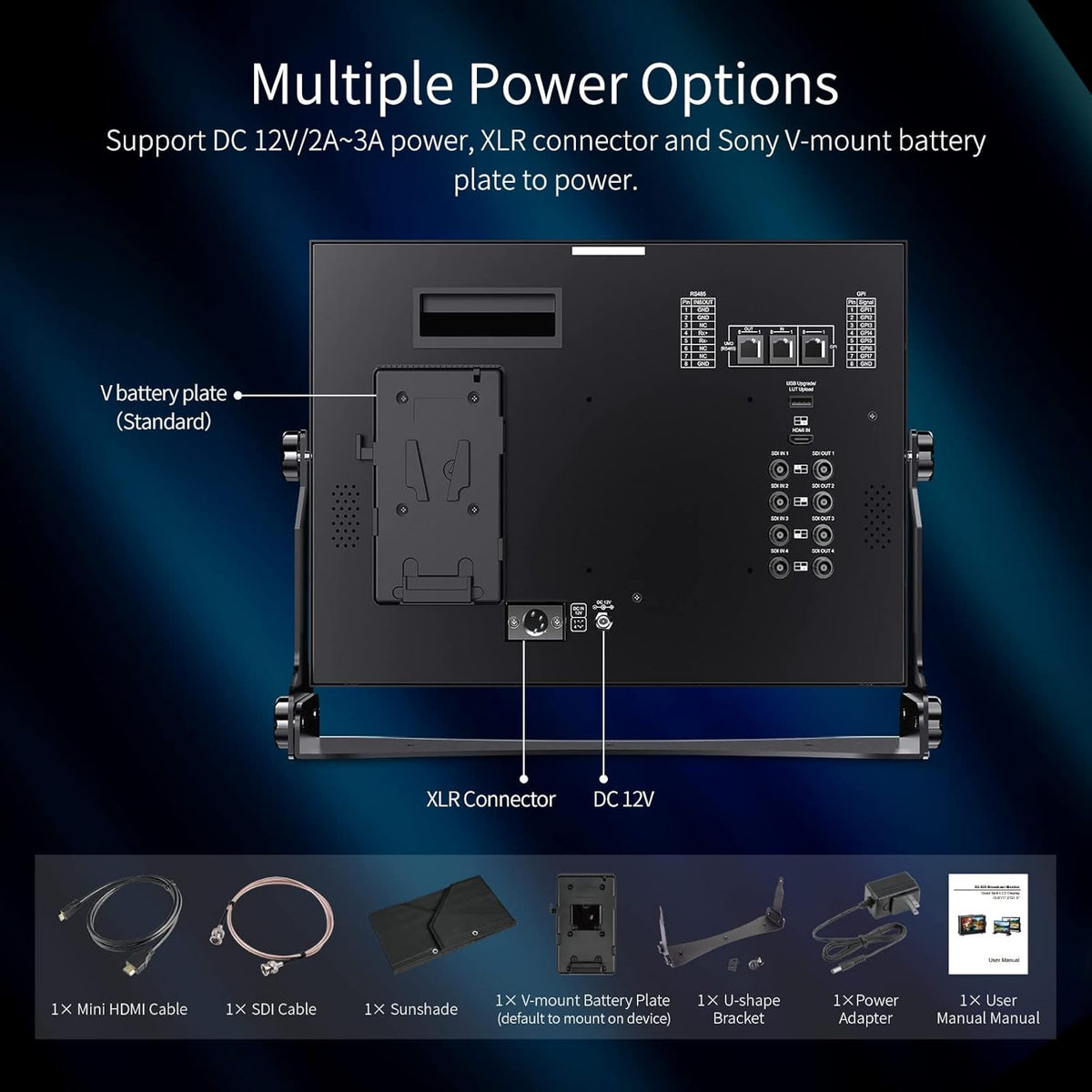

【Multiple Display Mode】The screen can be set to full screen, picture-in-picture and quad to meet different monitoring needs. 【Package Include】1×Power Adapter, 1× SDI Cable, 1× Mini HDMI Cable, 1× V-mount Battery Plate (default to mount on device), 1× Sunshade, 1× U-shape Bracket, 1× User Manual Manual
15.6 inch Multi Camera Broadcast Production Monitor with Waveform LUT HDR 4X3G SDI Inputs and Outputs HDMI RS485 Full HD 1920x1080 M36930
Sale price
$28.99
Regular price $122.92
Shipping calculated at checkout.
【Accurate Color, Clearly Image】with 800:1 contrast ratio, high resolution 1920x1080, accurate color reproduction, provides you natural and clear image. Supports HDR (high dynamic range) monitoring, for incredible clarity and details, effectively enhancing the overall picture quality.
【Improve the Shooting Efficiency】Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash disk (up to load 36), recreate film looks. Provides a series professional auxiliary monitoring tools, help you accurate focus and expose.
【4X3G-SDI Inputs and Output】It comes with 4x3G-SDI signal inputs and outputs, suitable for multicamera shooting in crew, and simultaneous monitoring by multiple persons. In addition, it also with a HDMI input, RS485, GPI control interface, meet different needs.
【Gynamic UMD and Tally Lights】ATEM156S supports UMD of TSL 3.1/4.0 protocol, with 0-126 TSL address selection, and Max 16 letters displayed. GPI controls Red Tally and Green Tally, which can remind the photographer to enter the recording state.
【Multiple Display Mode】The screen can be set to full screen, picture-in-picture and quad to meet different monitoring needs. 【Package Include】1×Power Adapter, 1× SDI Cable, 1× Mini HDMI Cable, 1× V-mount Battery Plate (default to mount on device), 1× Sunshade, 1× U-shape Bracket, 1× User Manual Manual
| LAIZESKE W1000S Wireless Video Transmission System SDI Dual HDMI 1000FT 0.08S | SEETEC ATEM156-CO 15.6 Inch Live Streaming Carry-on Broadcast Director Monitor | SEETEC 4K156-9HSD 15.6 Inch Broadcast LCD Monitor 4xHDMI Inputs UHD 3840x2160 | SEETEC ATEM173S 17.3 inch Multi Camera Broadcast Production Monitor 4 SDI In Out | SEETEC ATEM215S 21.5 inch Multi Camera Broadcast Production Monitor 4 SDI In Out | SEETEC LUT215 21.5 Inch Built in De Log 3D LUT Broadcast Production Monitor | |
|---|---|---|---|---|---|---|
| Screen Size | OLED Screen | 15.6' IPS | 15.6' IPS | 17.3' IPS | 21.5' IPS | 21.5' IPS |
| Resolution | 1920×1080 pixels | 3840×2160 pixels | 1920×1080 pixels | 1920×1080 pixels | 1920×1080 pixels | |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | |
| Brightness | 250cd/m² | 300cd/m² | 300cd/m² | 250cd/m² | 250cd/m² | |
| Contrast | 800:1 | 800:1 | 700:1 | 1000:1 | 3000:1 | |
| Inputs | 3G-SDI HDMI | HDMIx4 | SDI, HDMIx4, DVI, VGA, Audio(L/R) | 4x3G-SDI, HDMI, RS485, GPI, USB | 4x3G-SDI, HDMI, RS485, GPI, USB | 3G-SDI, HDMI2.0, HDMI1.4, RS485, GPI, DP (DisplayPort), USB |
| Outputs | 3G-SDI, HDMI | HDMIx4, 3.5mm Stereo Headphone, | SDI, Stereo Headphone, Speaker(built-in) | 4x3G-SDI, RS485, Stereo Headphone，speaker | 4x3G-SDI, HDMI, RS485, GPI, USB | 3G-SDI, RS485, Stereo Headphone, Speaker(built-in) |
| Features | 1000ft transmission range, 0.08S low latency, support 1080P@60Hz, Wireless full-duplex talkback, transmitter can be switched as a receiver, One TX to multiple RX, APP monitoring for Android/iOS, 13 frequency channels, AUTO channel scan | Quad Split Display, Peaking Focus Assist, False Color, Anamorphic, Display Rotate , Check Field, Image Freeze, Zoom, Pixel to Pixel, Center Marker, Safety Marker, Line Color | Quad Split Display, Peaking Focus Assist, False Color, Image Flip, Check Field, Image Freeze, Zoom, Pixel to Pixel, Center Marker, Screen Marker, Line Color | 3D-LUT, HDR, All Waves, RGB Histogram, Focus Assist, Zebra, Monochrome, False Color, Timecode, Nine Grid, Safety Marker, Center Marker, Parade, Vector, Histogram, Audio Meter, Scan Mode, Anamorphic Mode, Zoom, Freeze, Pixel to Pixel, Colortemp | 3D-LUT, HDR, All Waves, RGB Histogram, Focus Assist, Zebra, Monochrome, False Color, Timecode, Nine Grid, Safety Marker, Center Marker, Parade, Vector, Histogram, Audio Meter, Scan Mode, Anamorphic Mode, Zoom, Freeze, Pixel to Pixel, Colortemp | Delog LUTs, 3D LUTs, GPI control, dynamic IMD, Histogram, Focus Assist, False Colors, Over Exposure, Timecode Display, Picture in Picture, Over Scan, Anamorphic Mode, Zoom, Pixel to Pixel, Center Marker, Safety Marker, Aspect Ratio, Image Freeze |
| Unit Size | 67L*24W*118H (excluding antenna） | 372L×262H×28.4D (mm) (Without Aluminum Case) | 372L×262H×28.5D (mm) (Without Bracket) | 425L×296H×23D (mm) (W/O bracket) | 511.6L×355.6H×23.3D (mm) (W/O bracket) | 511.6Lx355.6Hx36D (mm) (W/O stand feet) |
| Unit Weight | 128g (One Unit) | 1.57kg (Without Aluminum Case) | 2.03kg (Without Bracket) | 2.84kg | 4.27kg | 4.4kg |
